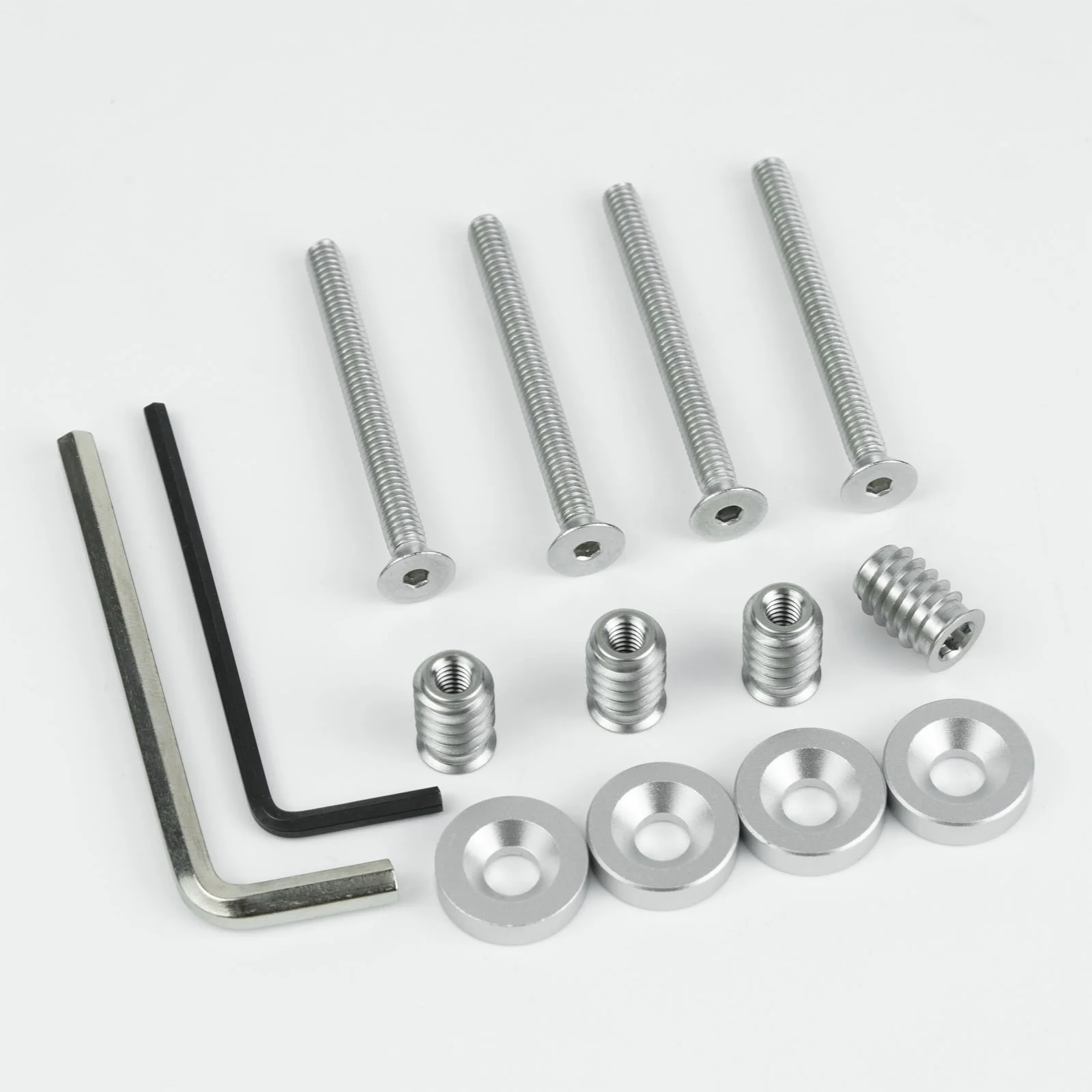

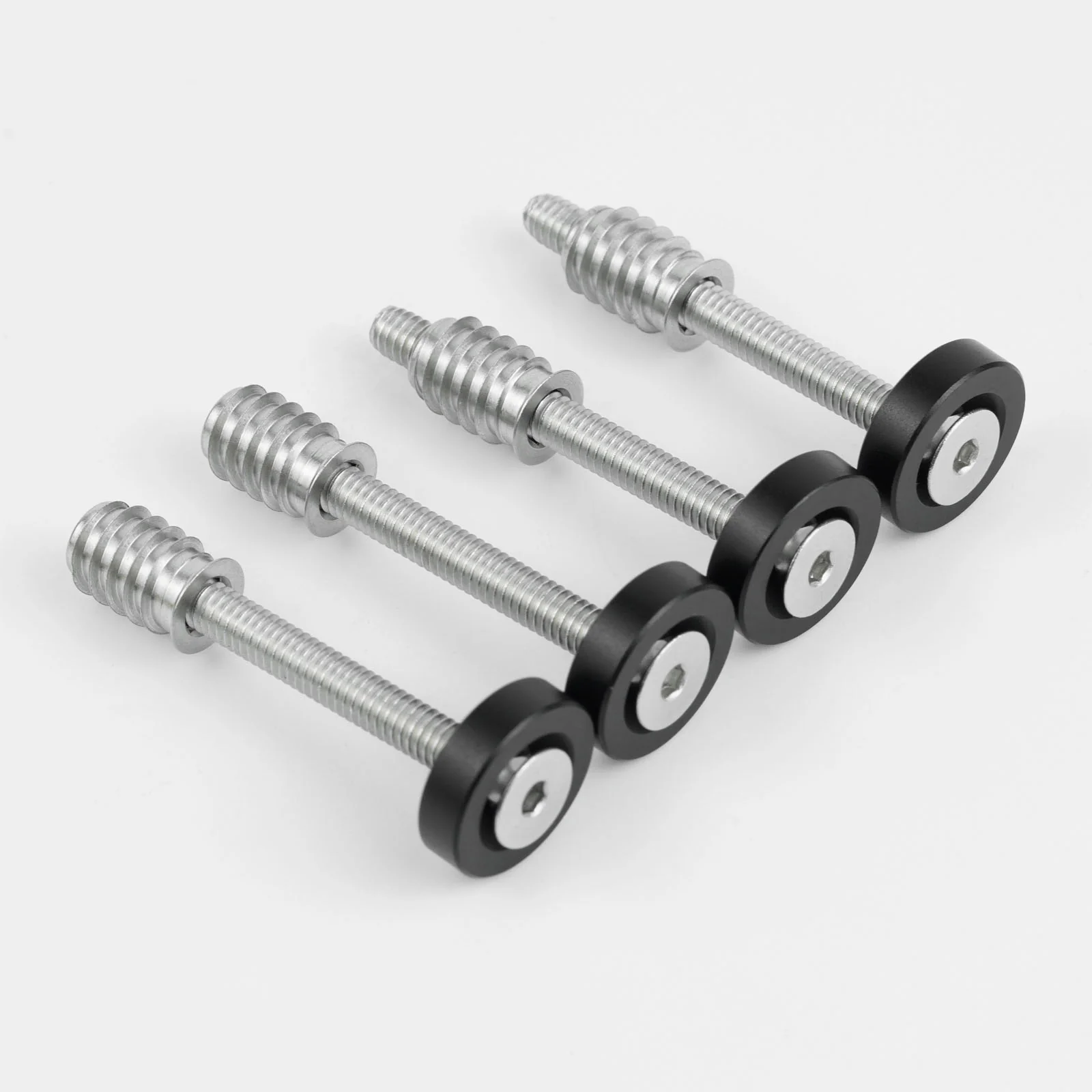

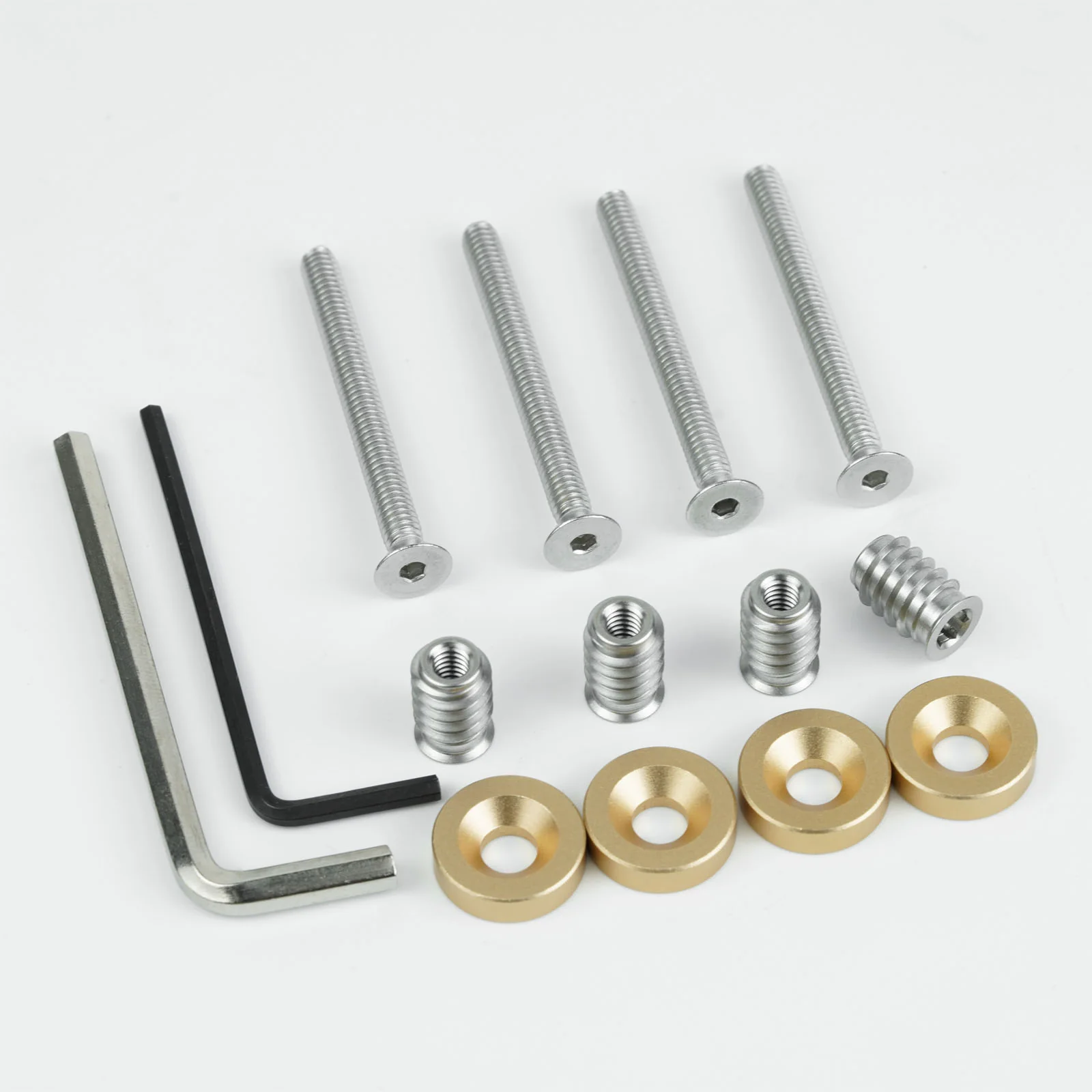

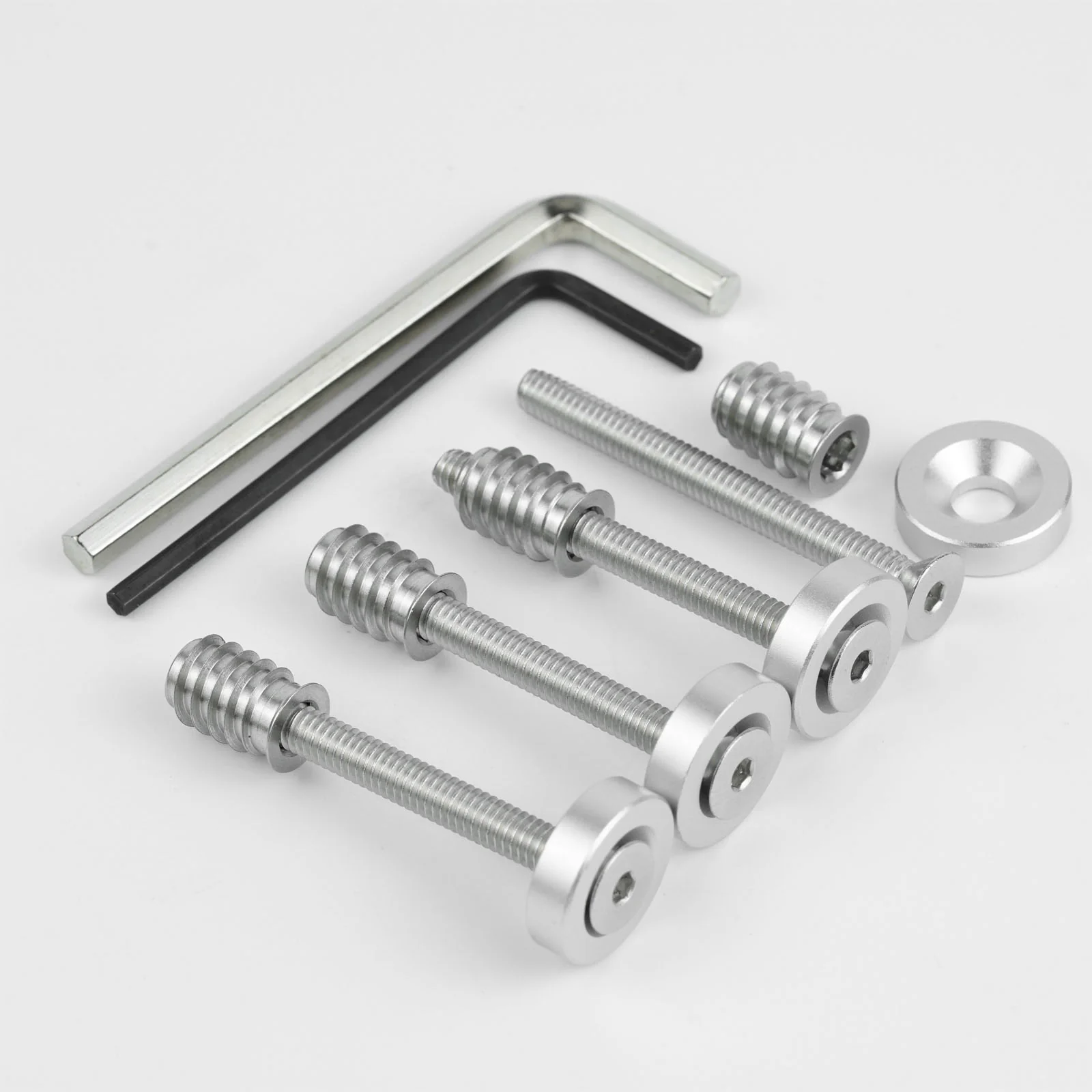

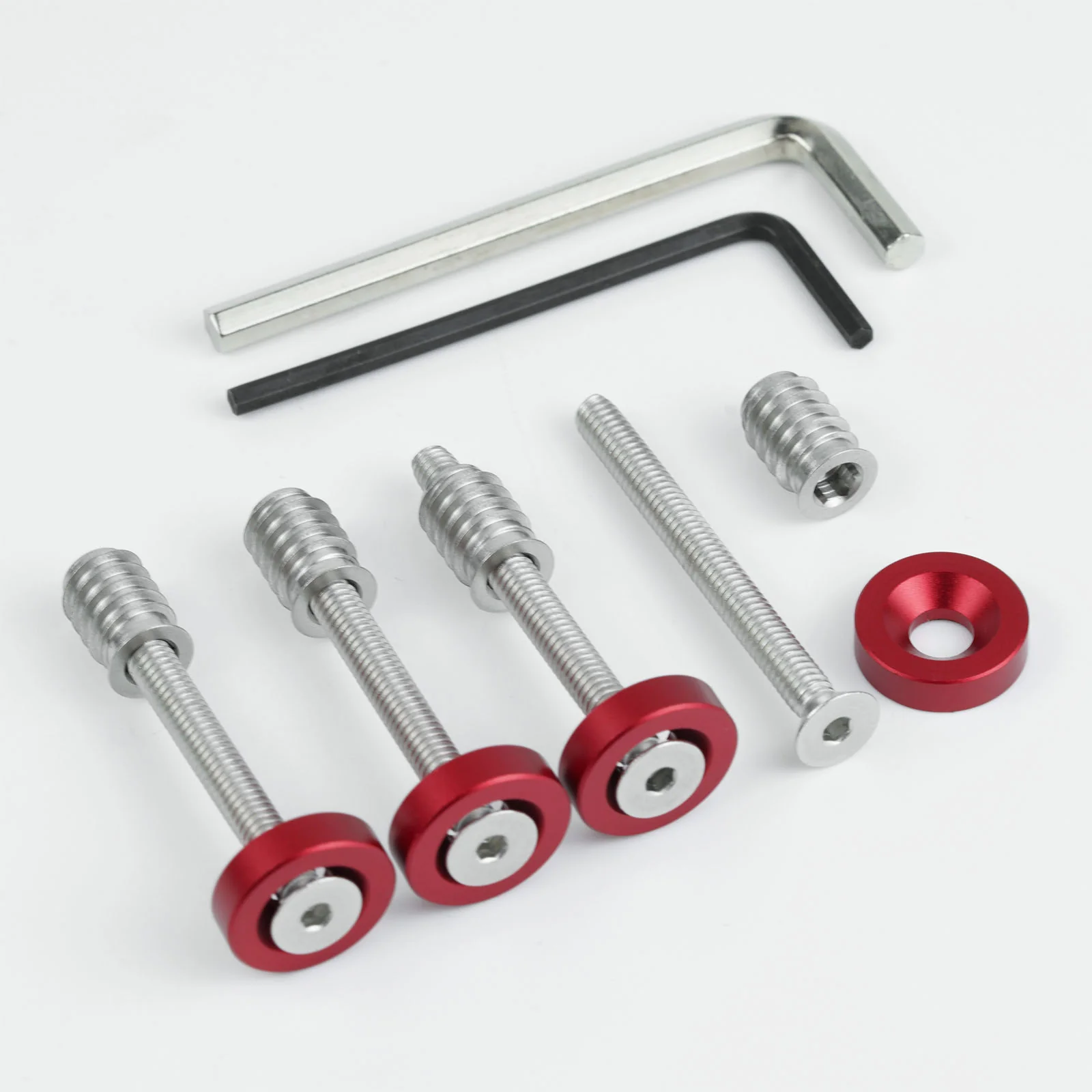

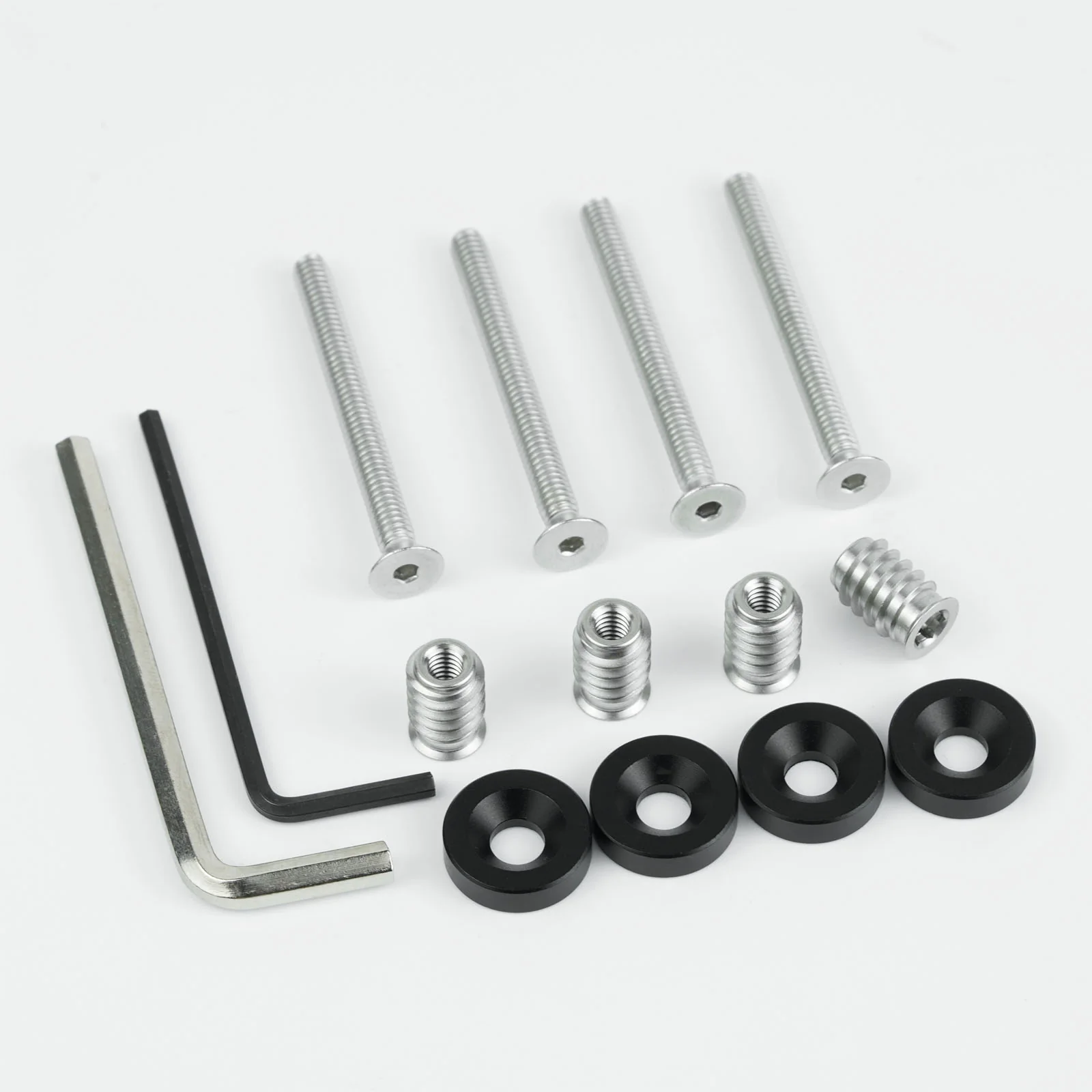

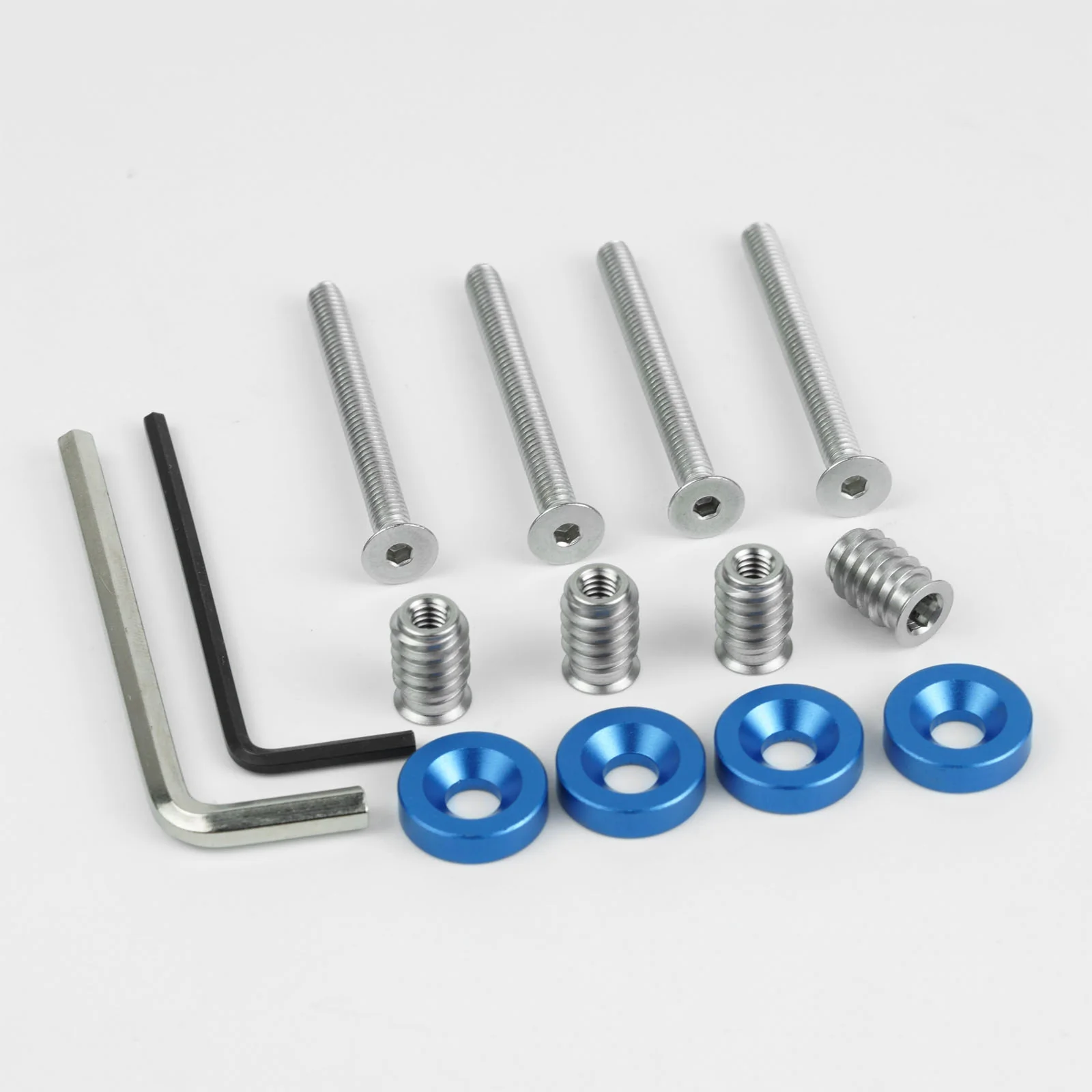

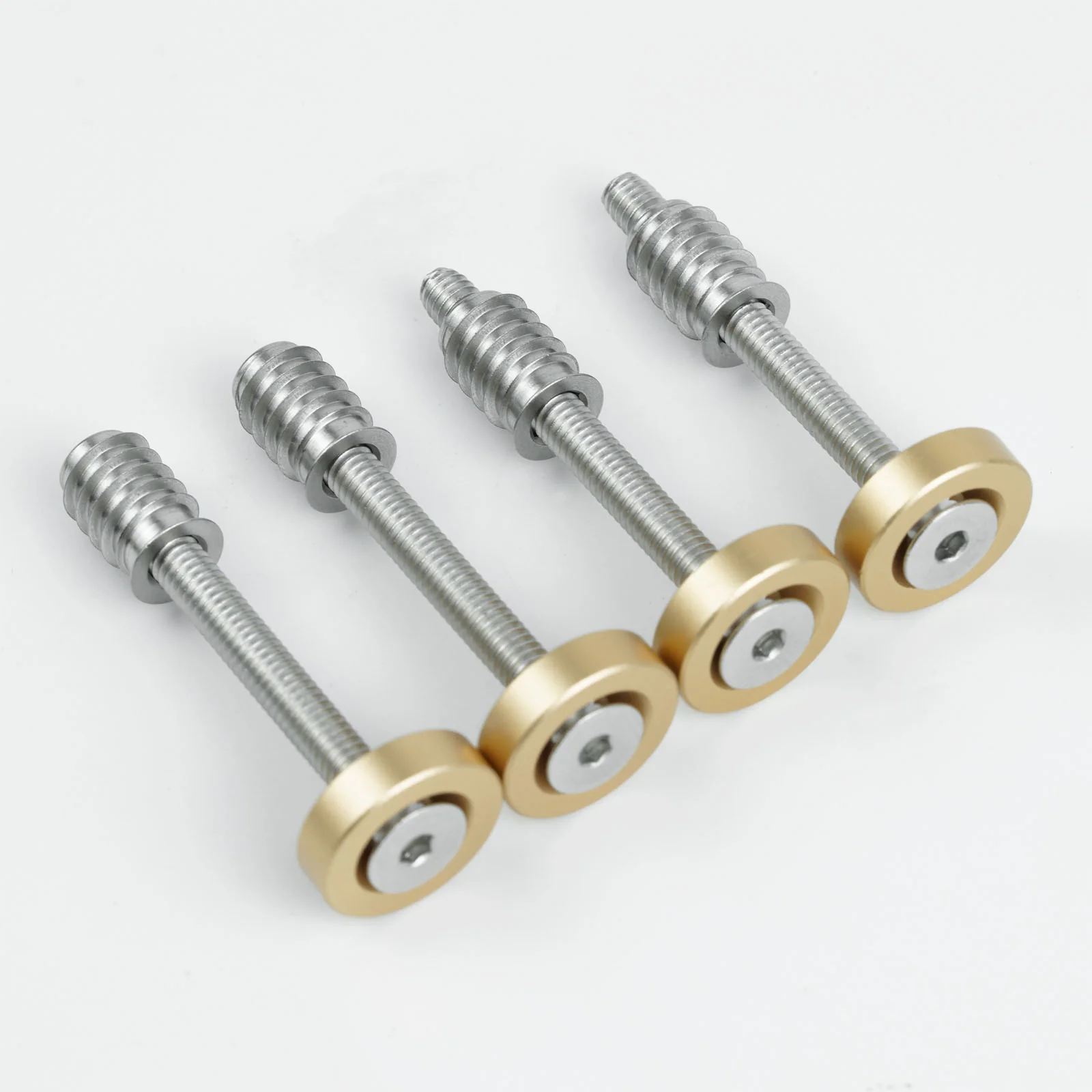

Guyker GN-011 Bolt-On Neck Mounting Screw & Bushing Set

Key Features:

• Aluminum alloy top caps + stainless steel screws for a lightweight appearance and durable fastening hardware
• Designed for the bolt-on neck joint / neck mounting area, not as a standard one-piece neck plate
• Clean low-profile design with 15 mm top diameter for a modern custom-build look
• Uses 8#-32 thread for matched neck mounting systems
• Lower mounting piece dimensions are clearly defined for fit checks: 12 mm length, 8 mm outer diameter, 6.3 mm inner diameter
• Available in multiple cap color options for custom replacement and upgrade projects

Specifications:

• Material: Aluminum alloy top cap + stainless steel screw
• Application: Bolt-on neck mounting / neck joint area
• Top Diameter: 15 mm
• Top Thickness: 4 mm
• Overall Length: 44.5 mm
• Thread Size: 8#-32
• Lower Mounting Piece Length: 12 mm
• Lower Mounting Piece Outer Diameter: 8 mm
• Lower Mounting Piece Inner Diameter: 6.3 mm
• Color Options: Chrome / Black / Gold / Green / Red / Blue

Package Includes:

• Neck mounting screws
• Matching mounting bushings

Fitment Note / Warm Reminder:
Please verify mounting structure, thread compatibility, overall length, top diameter, and lower mounting piece dimensions before ordering. This set is intended for bolt-on neck joint hardware with individual mounting points, so customers using a traditional one-piece neck plate should confirm compatibility carefully.
